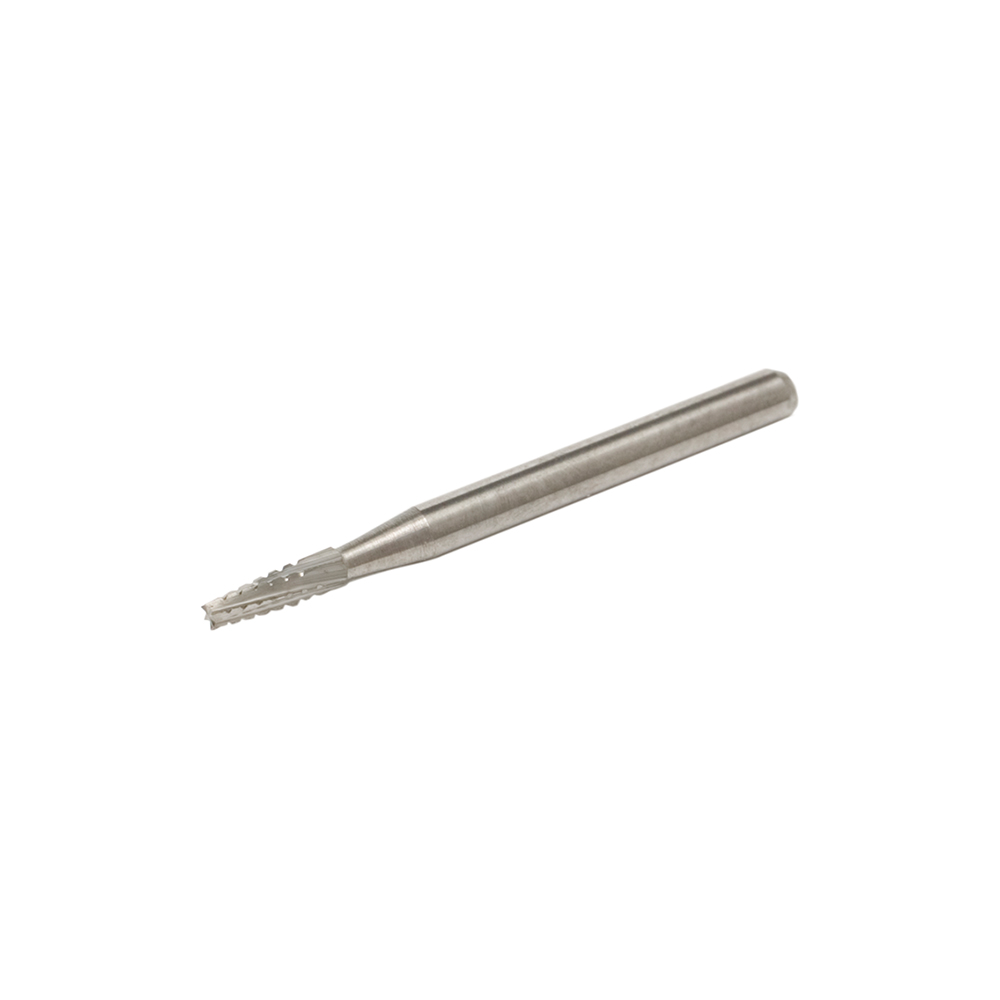

Tapered Carbide Bur

• Tapered and fluted for extra fast cut
• Extra long life

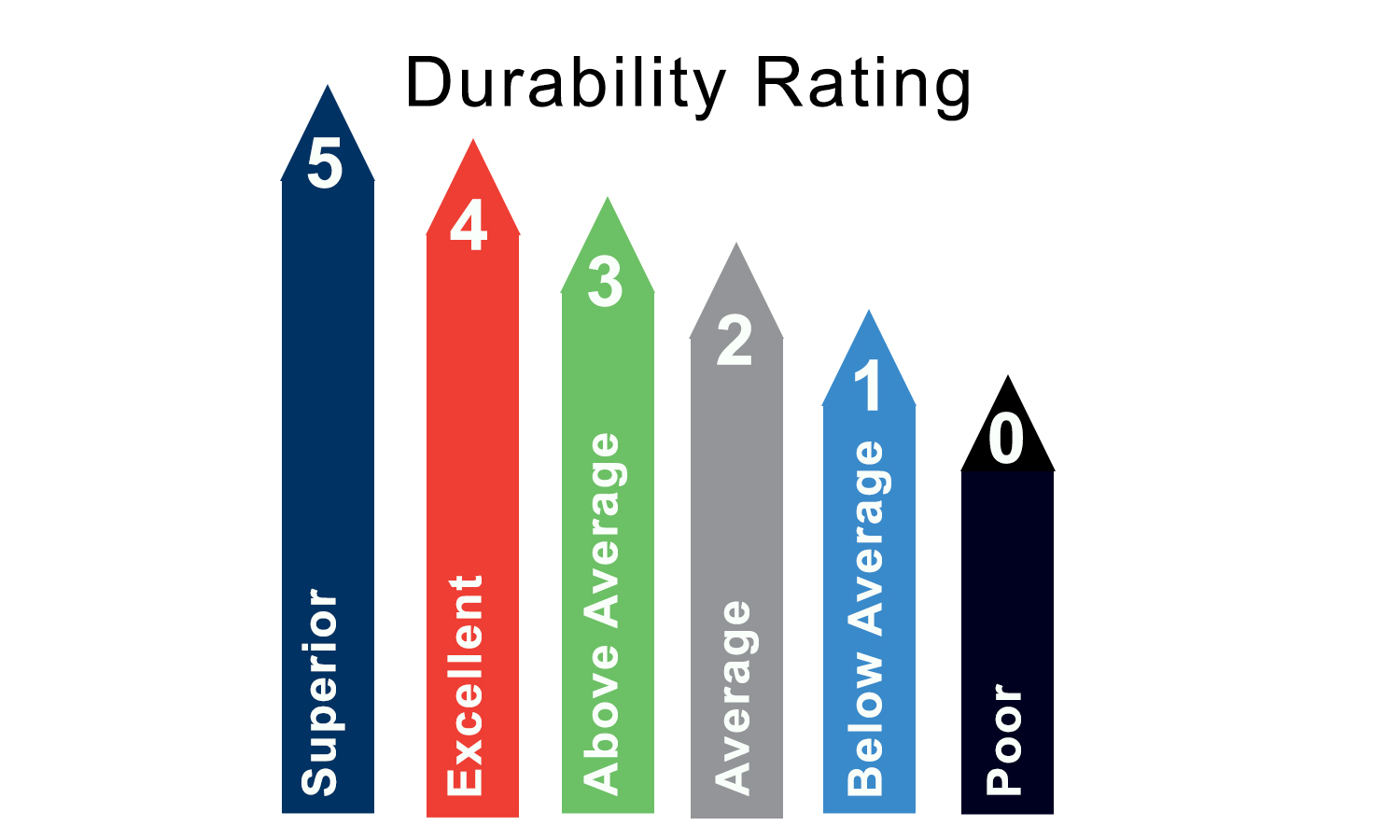

• Durability rating: 5
• Shaft length: 0.75
• Shaft diameter: 0.060
• Hole size: 0.047
• Fits Delta Kits 1/16″ collet (Part # 14100)

Replaces Part Number: FG701

Available in two packaging options:

26020 Tapered .047 Carbide Bur Pkg of 5

26025 Tapered .047 Carbide Bur Pkg of 100

Tech Tip: Get More Out of Your Burs When Drilling Glass

Various burs are used in the windscreen repair business. So, how do you select the right bur for the job and get the most mileage out of that bur?

The first enemy of bur service life is heat. Because the drilling head on these tools is small, it does not take much friction to build up a considerable amount of heat in the metal. If you’ve ever mistakenly touched one after using it you know what I mean. They can get hot! Drilling at a high speed or for a prolonged period of time both contribute to heat build. The larger the drilling head of the bur the better it will be able to withstand the effects of heat which is what makes the Tapered Carbide Bur a good all around choice.

Another foe of the carbide bur is debris from previous drilling. Bits of glass, dirt and even the polyvinyl butyral laminate can become stuck to the bur and will work to wear it down if left. To clean the bur before or after use simply use a lighter to burn contaminates away. Now, as we just discussed, heat harms as well so use the flame sparingly. You need just enough to burn away contamination and no more.
